Creating harmonising colour combinations
The NCS System allows you to validate and refine your colour choices. Translate your inspiration into functioning colour palettes and gain valuable knowledge on how to rely on the NCS System in your work with colour below.
Hue
Colours with the same hue belongs to the same colour family. Colours with the same hue are found on the same place in the circle for example all nuances of R80B. These are all colours in the same triangle and in the same page in the NCS Atlas 2050. A very common way of combining colours in an interior.

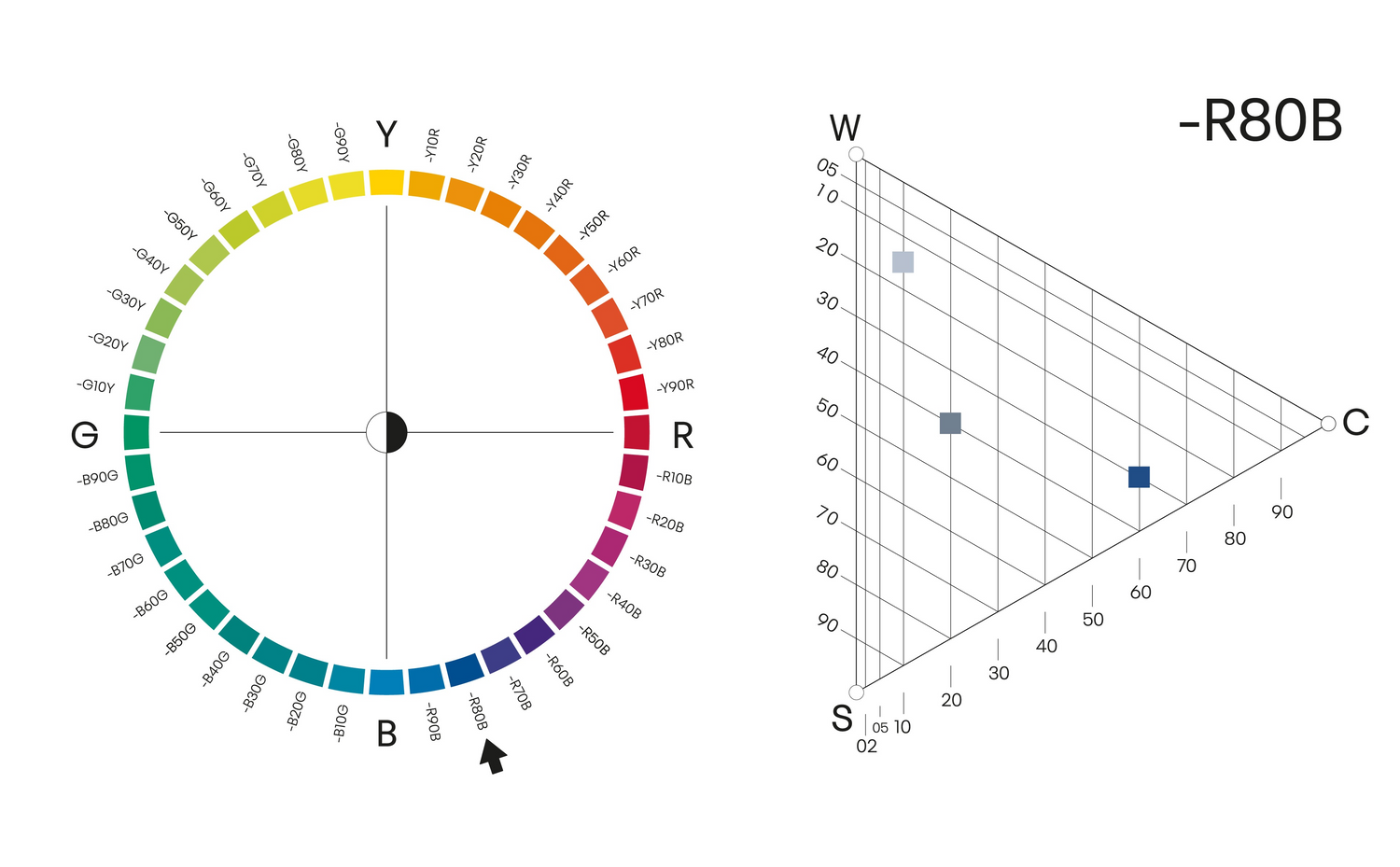

HUE -R80B
Here illustrated with 3 different nuances of the hue -R80B.
Nuance
Colour samples having the same nuance are found in the same position in the colour triangle regardless of hue, different pages in the NCS Atlas. Very useful when choosing colours for a colour assortment and in interior design.

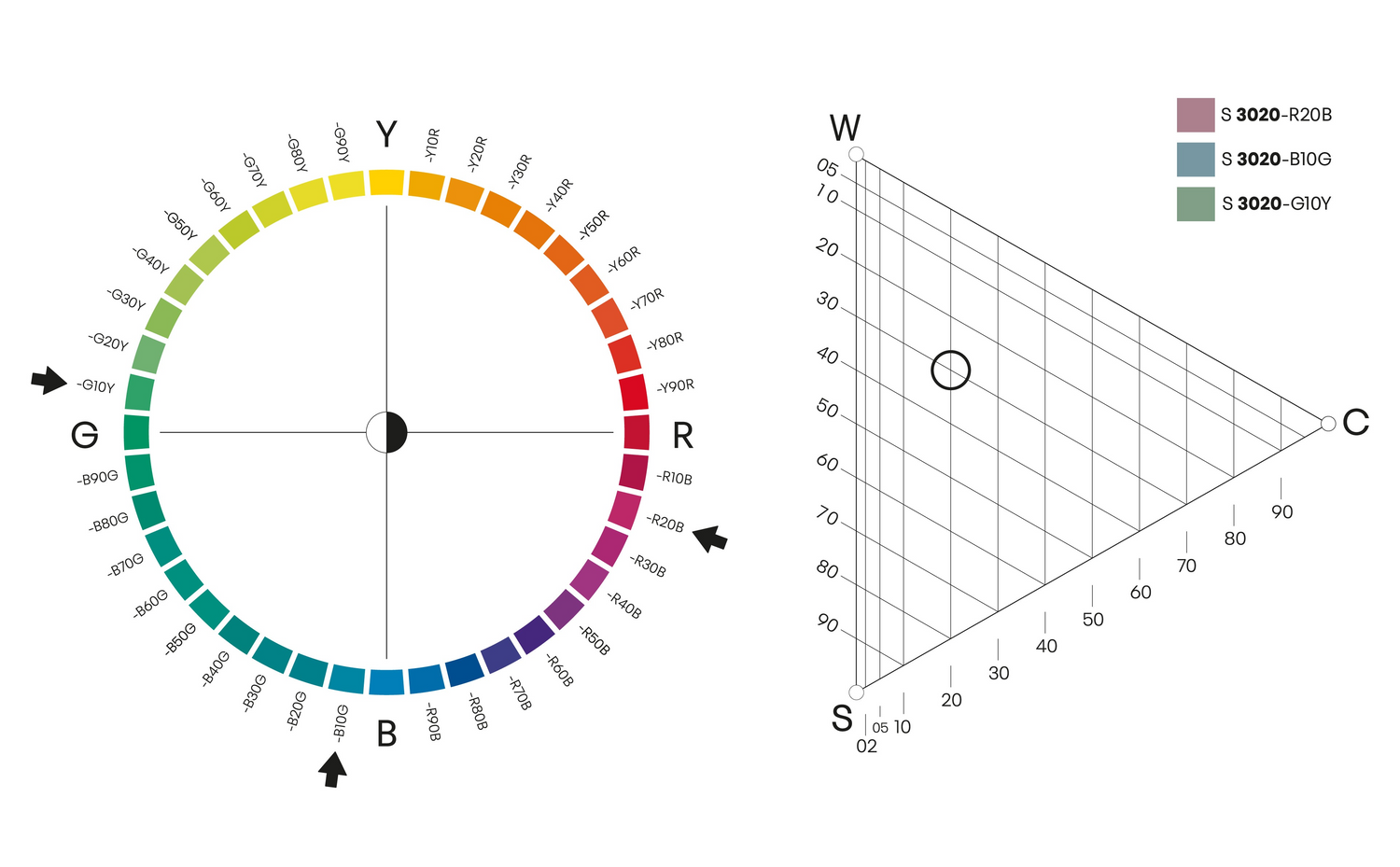

NUANCE 3020
Here illustrated with 3 different hues of the same nuance 3020.
Chromaticness
Colour samples which have the same chromaticness are found on a straight line parallel to the greyscale from white (W) to black (S). The less chromatic the colour is, the closer it is to the vertical grey scale. Useful in interior design and pattern compositions.

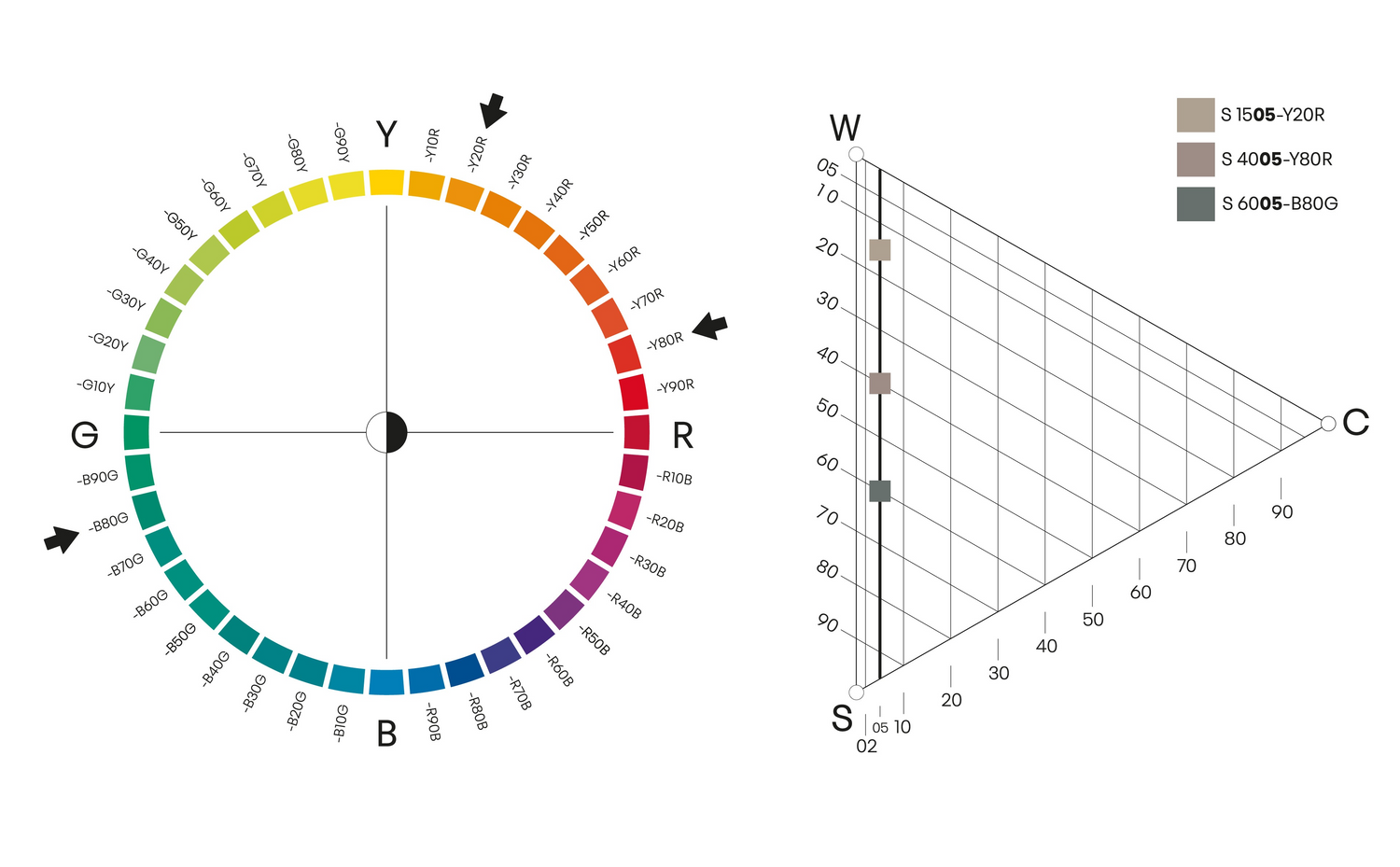

CHROMATICNESS XX05
Here illustrated with 3 different colours with the same chromaticness which is 05.
Blackness
Colour samples which have the same blackness are found on a straight line parallel to the scale W-C, between white (W) and the maximum colour (C). The less blackish the colour is, the closer are they to this scale. Also very useful in interior design.

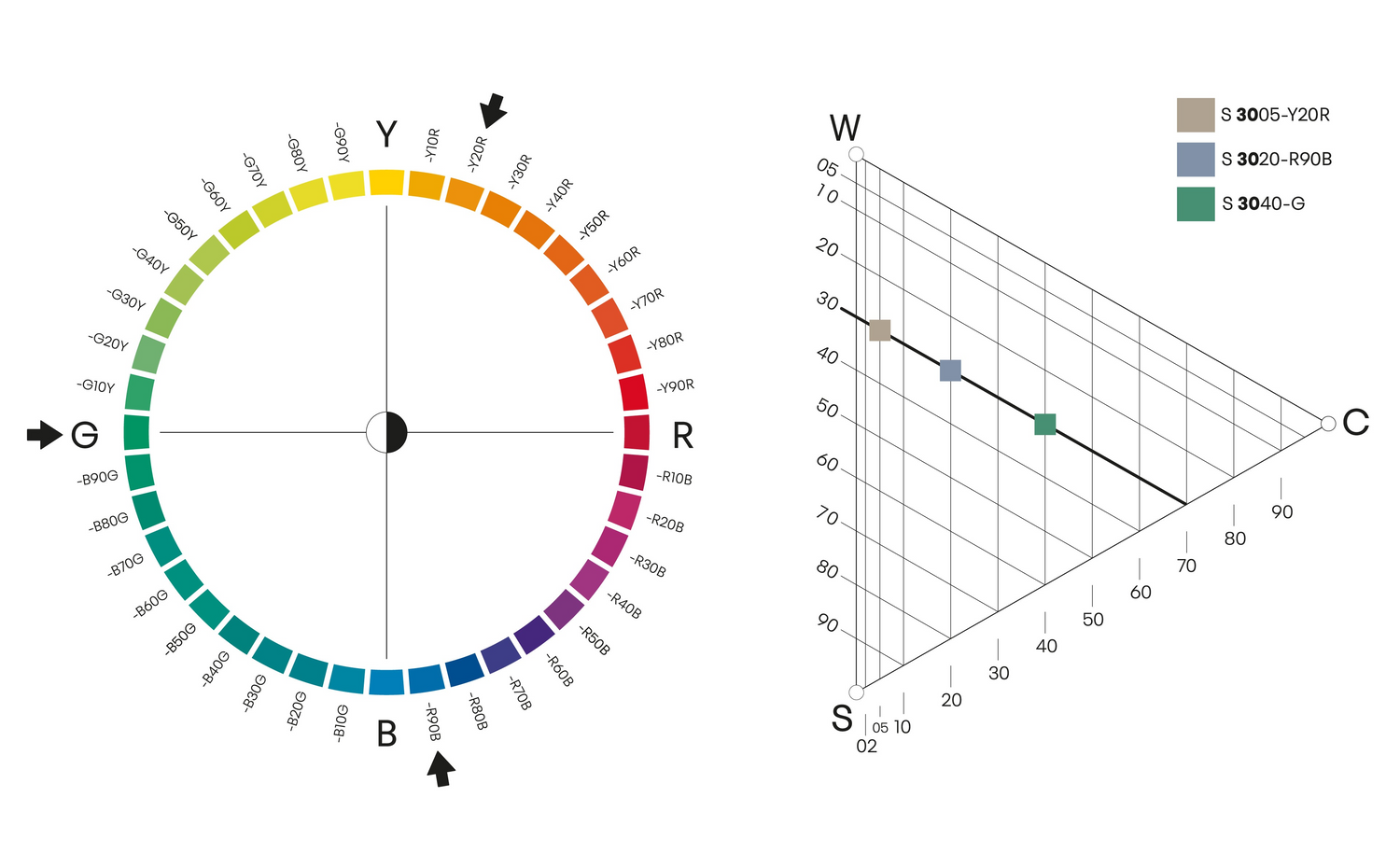

BLACKNESS 20XX
Here illustrated with 3 different colours with the same blackness which is 30.
Whiteness
Colour samples which have the same whiteness are found on a straight line parallel to the scale between black (S) and the maximum colour (C). The less whitish, the closer they are to the S-C scale. Useful in pattern compositions.
WHITENESS = 60
The whiteness is calculated the following way: 100% - (S+C) = 60%
Here illustrated with 3 different colours with the same whiteness, which is 60. E.g. the whiteness in the nuance 3010: 30 + 40 is 60 and the rest up to hundred is 60, so the whiteness is 60.
NCS attributes
Colour similarities
The NCS System gives many other opportunities to experiment with colour using other colour attributes. The already shown similarities in hue, nuance, blackness, chromaticness and whiteness are NCS elementary attributes and are naturally found in the NCS Colour System. However, there are also other colour similarities that can be defined in the NCS System though they are not an elementary attribute of the NCS System like saturation similarity, lightness similarity and complementary colours.
Close related colours
Close related colours are colours that are within 10 steps in the colour circle. They don’t need to be placed in the same quadrant between two colours like R and B. They can start wherever on the circle, but you have to keep the maximum distance of ten steps. Here it is illustrated with 3 different hues: S 4055-R70B, S 1040-R60B AND S 2050-R40B, which are within 10 steps. There are also different nuances that make it more interesting.
Colours with the same saturation
There are different definitions of visual attribute saturation. Historically, and especially among artists, saturation means a colour that is strong chromatic. Today however we can find many different colours named saturated colours. It is a lot of your personal preferences. Find two common definitions of saturation:
- Saturation in general
the chromaticness/colourfulness of a colour percept judged in proportion to its brightness
- Saturation defined in NCS
attribute of a chromatic colour percept expressing the relationship between its chromaticness and whiteness. This is the same definition as an artist when he/she is working with a shadow series in a painting.
If whiteness and chromaticness are perceived as having the same proportional relation to each other when blackness varies, we speak of colours with the same saturation. In the NCS triangle, they are found on a straight line through from the black point S to a given place on the scale between W and C. The saturation, which is designated by m, is expressed by m = c/(c+w) or m = c/(100-s).
An example4030-Y90R has m = 0,5 and 6020-Y90R has m = 0,5.
4030-Y90R has m = 0,5 and 6020-Y90R has m = 0,5.
Colours with the same lightness
A difference in lightness between two colours is probably the most important factor contributing to the visual experience of a pattern or a form. Lightness shows how two colours contrast each other. It is also vital for the design and colour schemes of exterior and interior environments, not least for weak-sighted persons (e.g. the elderly) who need lightness contrast between different surfaces to be able to orientate themselves.
Lightness is not the same as whiteness. Whiteness and blackness are quality attributes in the same way as yellowness, redness, blueness and greenness which will characterize a colour. Lightness is not a quality of a unique colour but can be determined by comparing it to greyscale or through instrumental measurement. A yellow colour has an inherent lightness and a blue colour has inherent darkness.
Inherent lightnessFollowing the triangle's lines.
Following the triangle's lines.
Inherent darknessAgainst the triangle's lines.
Against the triangle's lines.
-
Inherent lightness
Following the triangle's lines.
-
Inherent darkness
Against the triangle's lines.
Since lightness is not an elementary attribute, it is not described by the NCS notation nor is it directly indicated by the NCS symbols. In the NCS Atlas, the colours which are alike in lightness are indicated with lines in each colour triangle. The NCS lightness value is indicated with a ν in the NCS Atlas between W and S on the left-hand side of the triangle. There is also a lightness scale (NCS Lightness Meter) with 18 different steps which is a good aid in assessing the lightness of different colours.
Complementary colours
Complementary colours are defined in many different ways in literature and reference works. When described as after images you will find them when straight lines are drawn between the pairs of perceived hues of complementary colour stimuli, they all intersect in a point with the approximate position chromaticness = 20, hue = R75B.
So they are not exactly opposite colours in the circle since the point is not in the centre of the circle. This is because NCS is not constructed according to the complementary colour theory and colour mixing principles.
